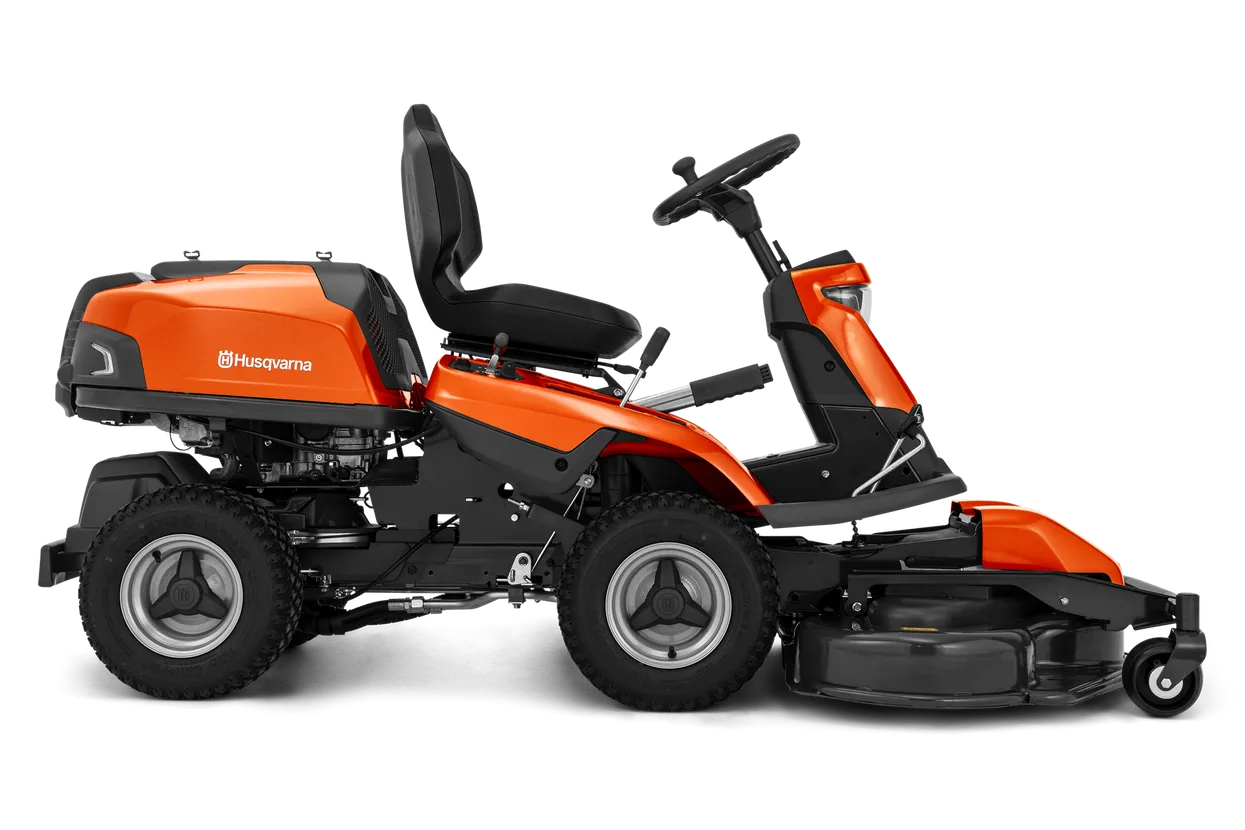

Husqvarna R 316TsX AWD - Versatile all-wheel drive Rider for year-round use.

Out of stock
SKU: 970 54 29‑10
(0)
$14,999.00 AUD inc. GST
Save $500 $15,499.00 AUD $14,999.00 AUD inc. GST

Got questions?

Feel free to get in touch

Privacy Policy | Delivery Policy

*Shipping fees are calculated based on your location and may be higher for regional or remote areas. Please check with us for an exact shipping cost before placing your order. This product is offered at a special website price, which may be lower than the price advertised in store. From time to time the website advertised price will differ from the in store price. This practise allows us to monitor our online marketing campaigns. To take advantage of this great low price please remember to mention the online advertised price when in store at the time of purchase.

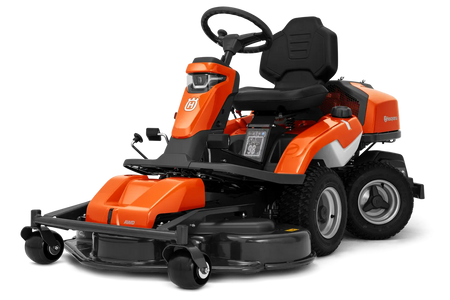

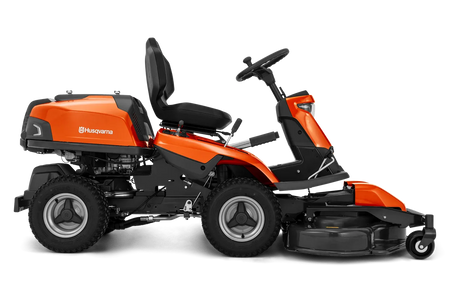

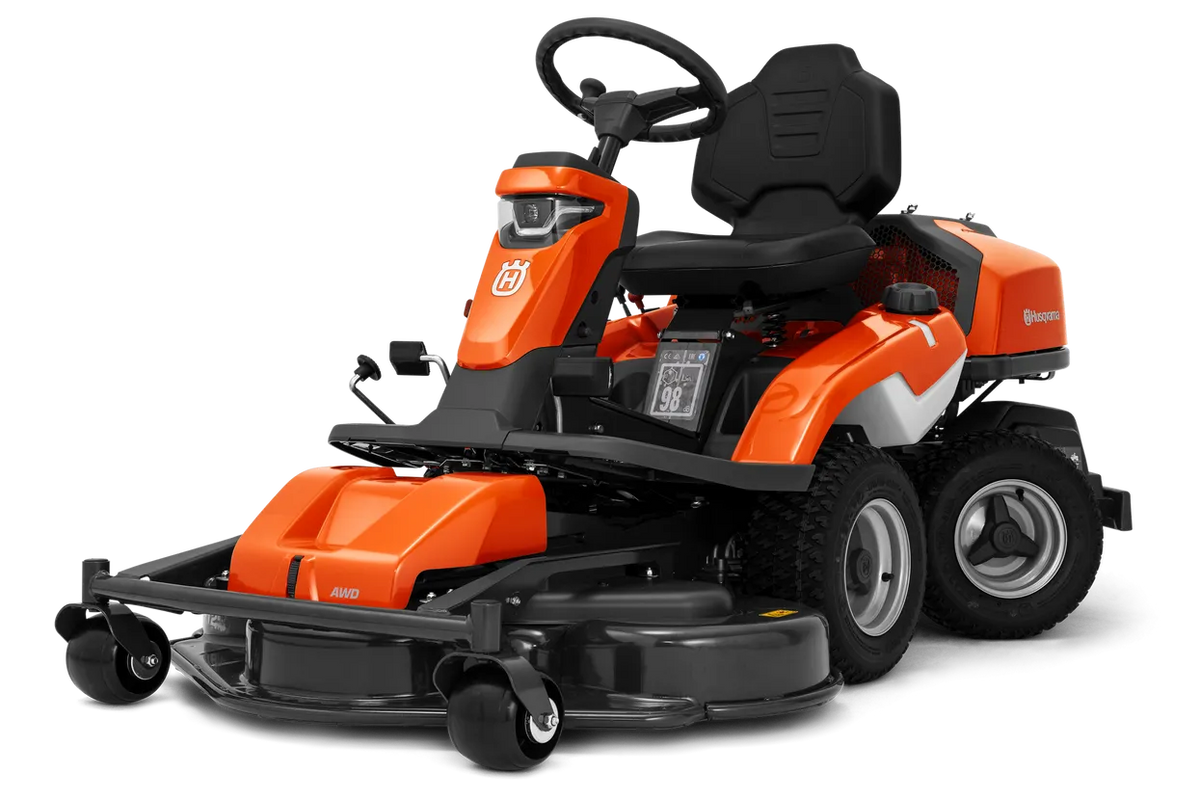

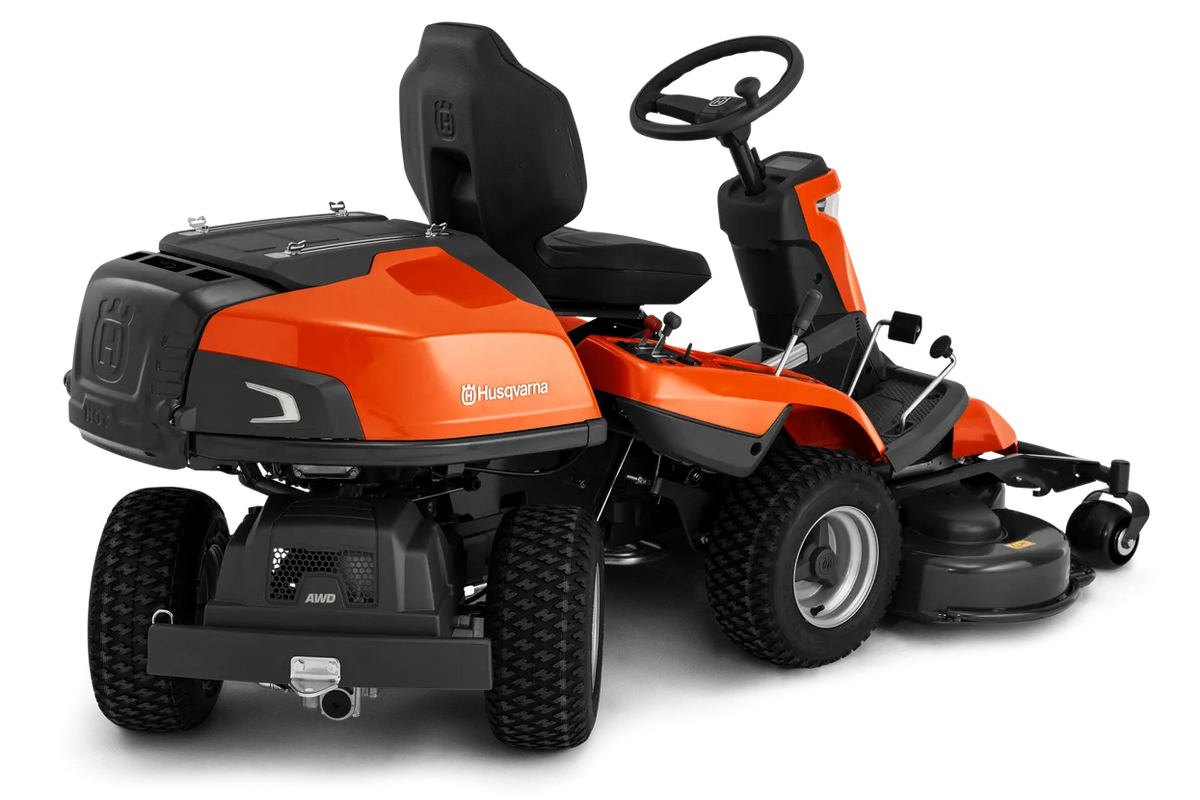

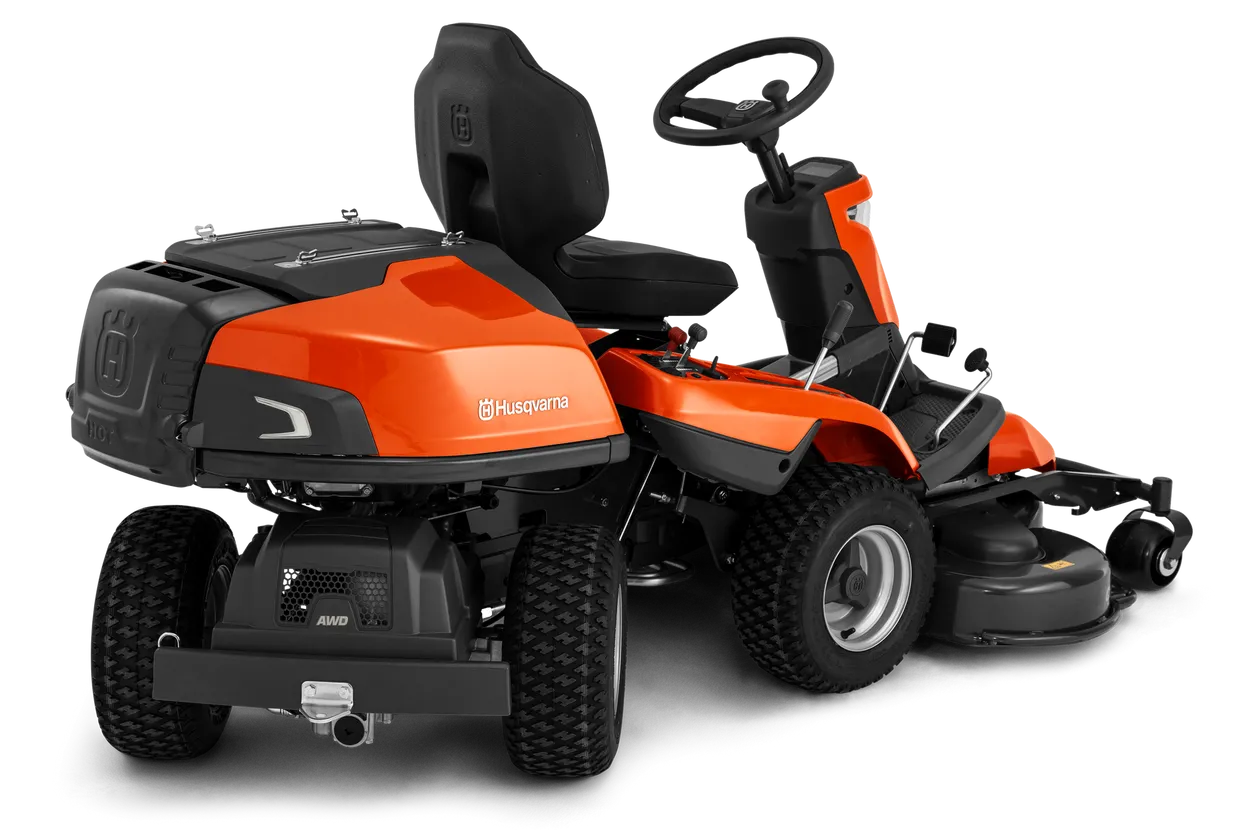

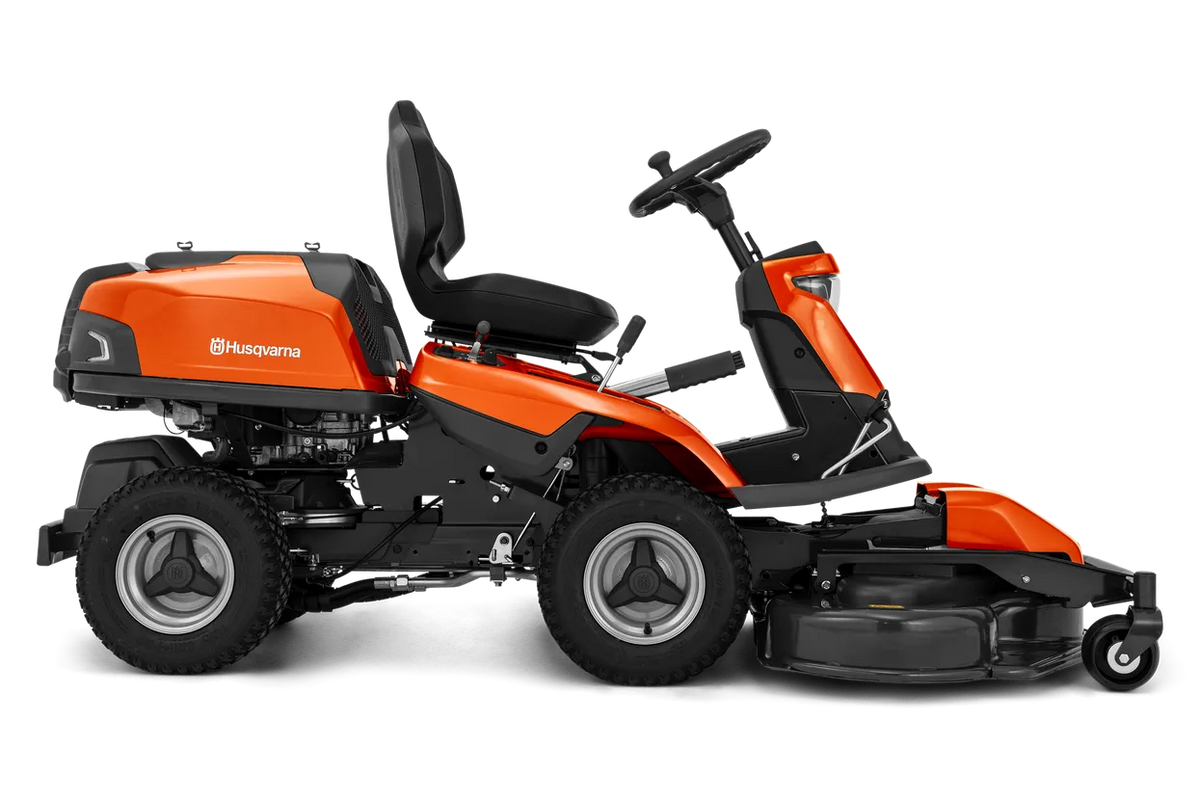

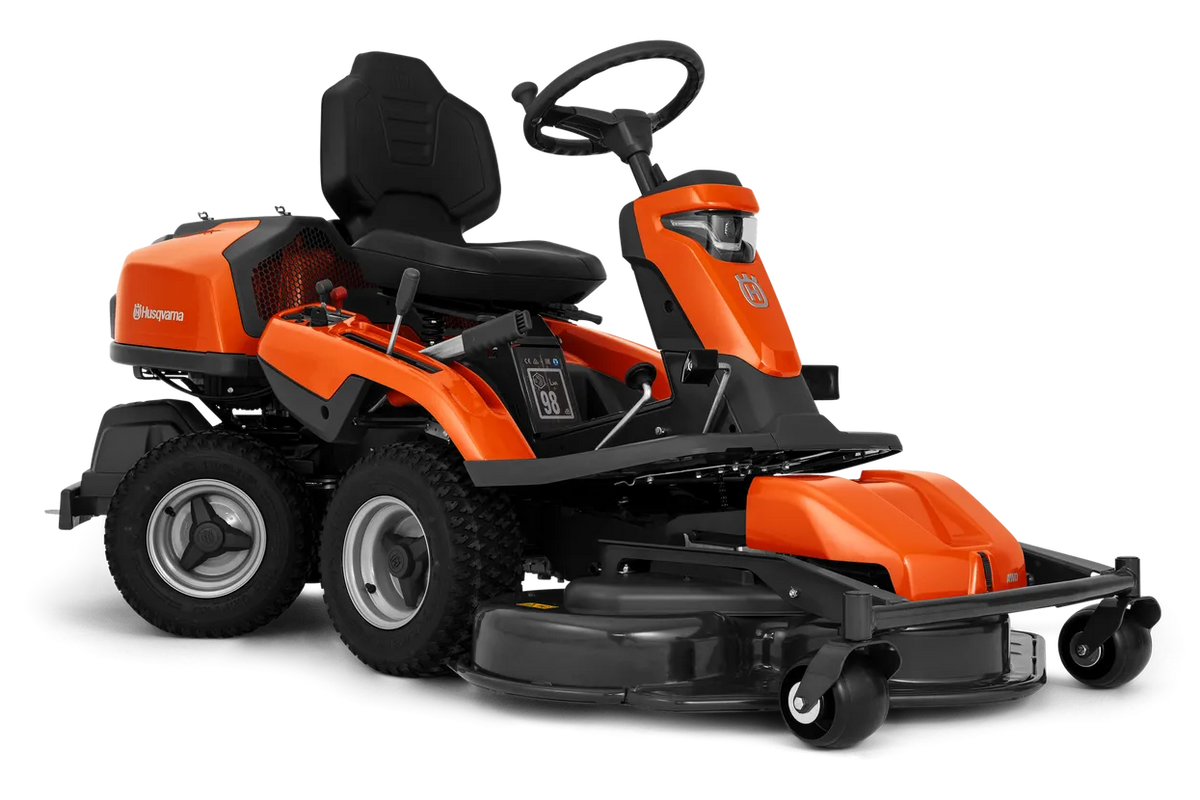

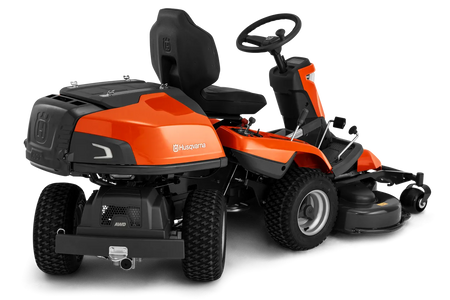

A high-performance ride-on lawn mower built for the toughest jobs. Husqvarna Rider R 316TsX AWD is designed for all-year use, with a great variety of accessories and combi cutting decks available. Power-assisted articulated steering and all-wheel drive provide great control and traction in challenging terrain. The engine hood covering the powerful V-Twin engine features integrated rails for attaching accessories like cargo holder. LED lights are fitted front and back for better visibility in dark conditions. Ready for Husqvarna Connect with Bluetooth®.
Adjustable steering wheel

For greater ergonomics and comfort a telescopic steering column allows the steering wheel height to be adjusted.

HMI Display

The intuitive HMI display provides real-time data and guides through visual symbols and warning sounds to facilitate the driver's work.

Attachment frame

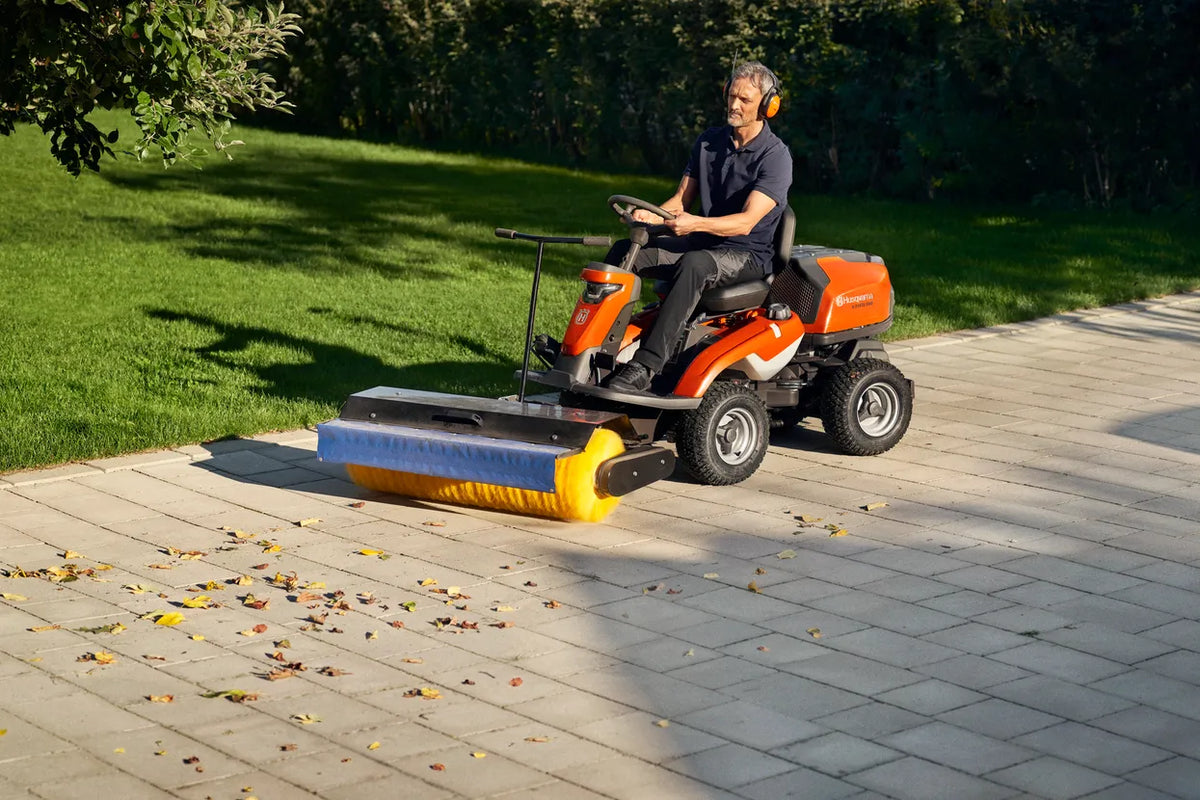

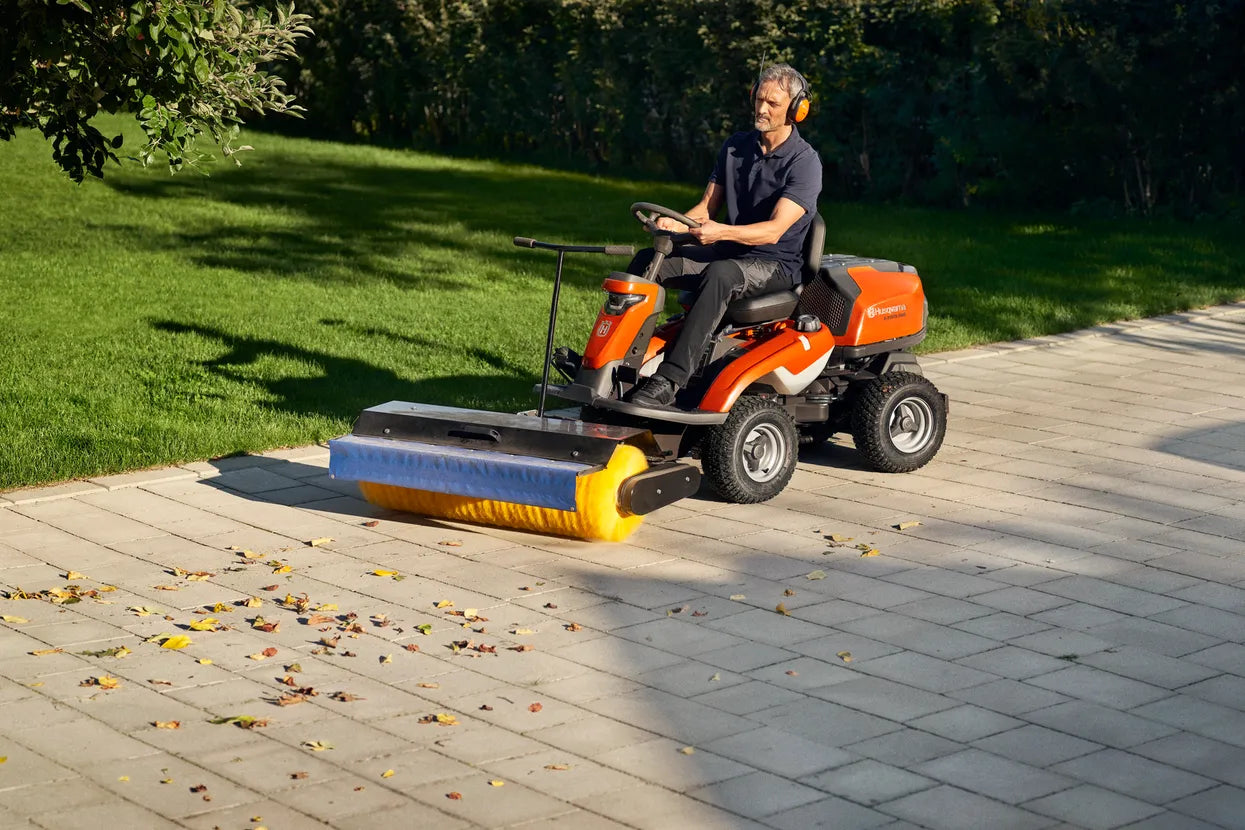

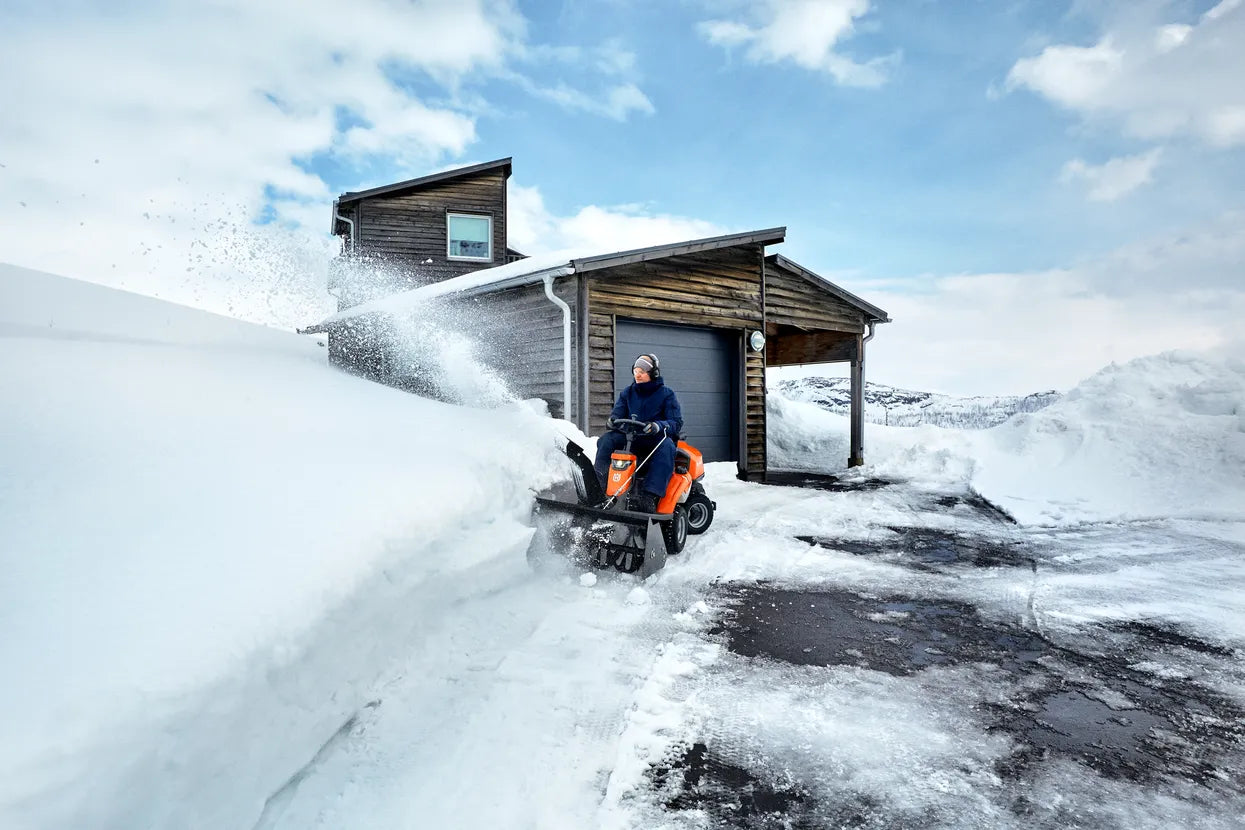

The attachment frame facilitates versatile use and makes it easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower.

Combi cutting deck

This Rider is delivered with a Combi cutting deck for efficient BioClip® (mulching) and rear ejection cutting.

Power steering

Power-assisted steering makes driving less strenuous and more enjoyable.

Comfortable driver's position

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low centre of gravity contributes to the exceptional traction as well as a comfortable 'sit-in' feeling for the user.

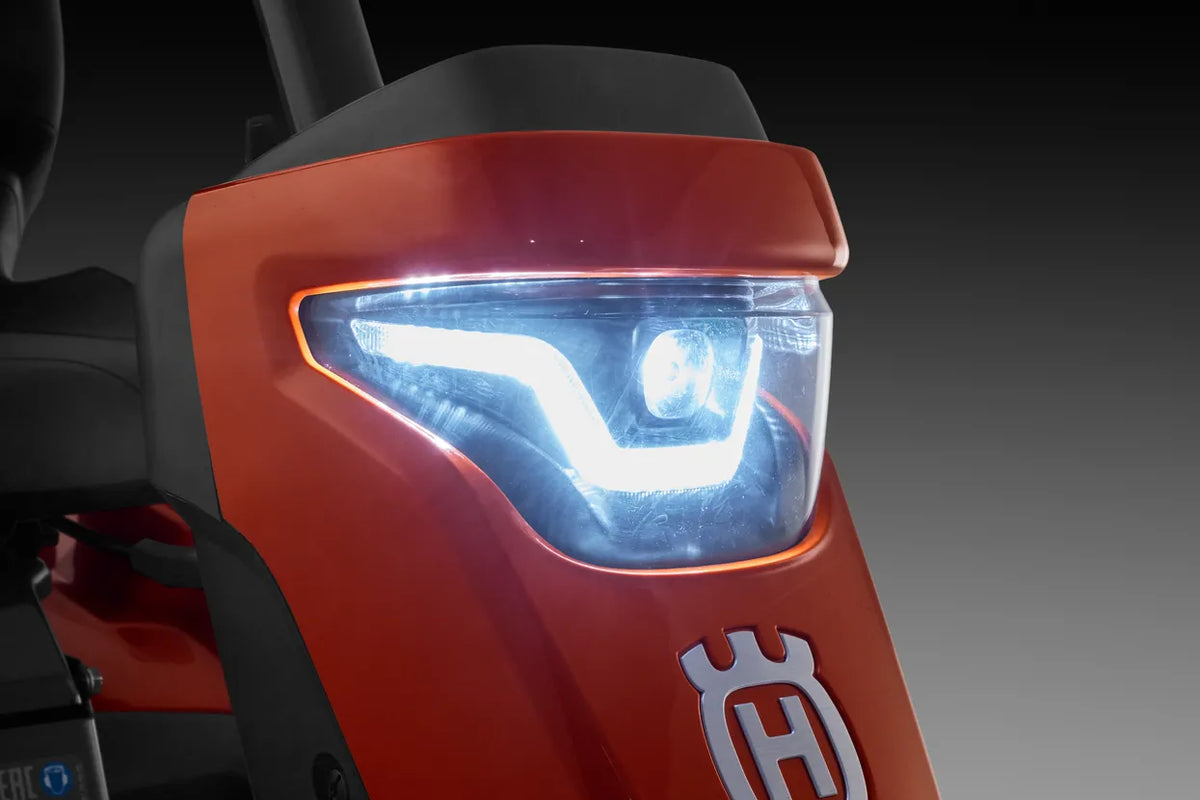

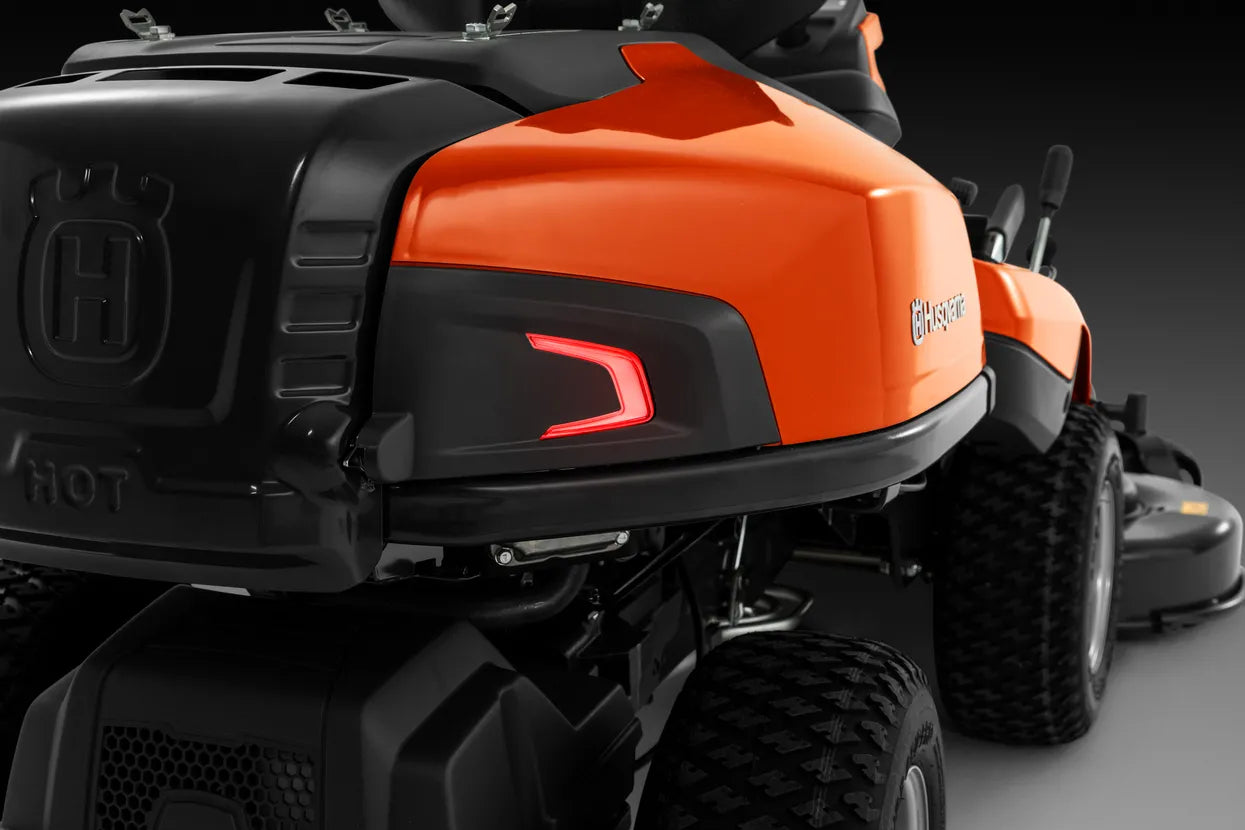

Dual LED lights for improved visibility.

Dual LED lights for enlarged lighted area and safer operation in darker conditions.

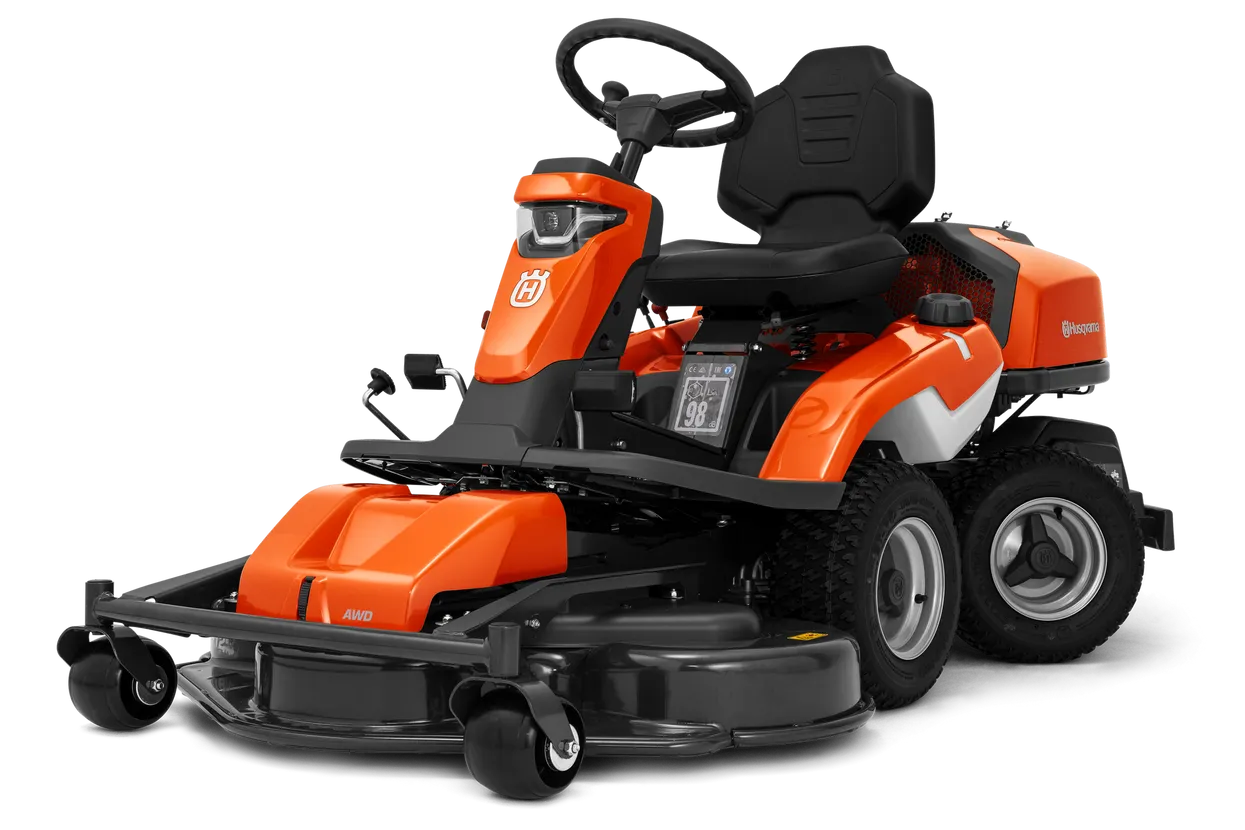

Front-mounted cutting deck

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

Patented articulated steering

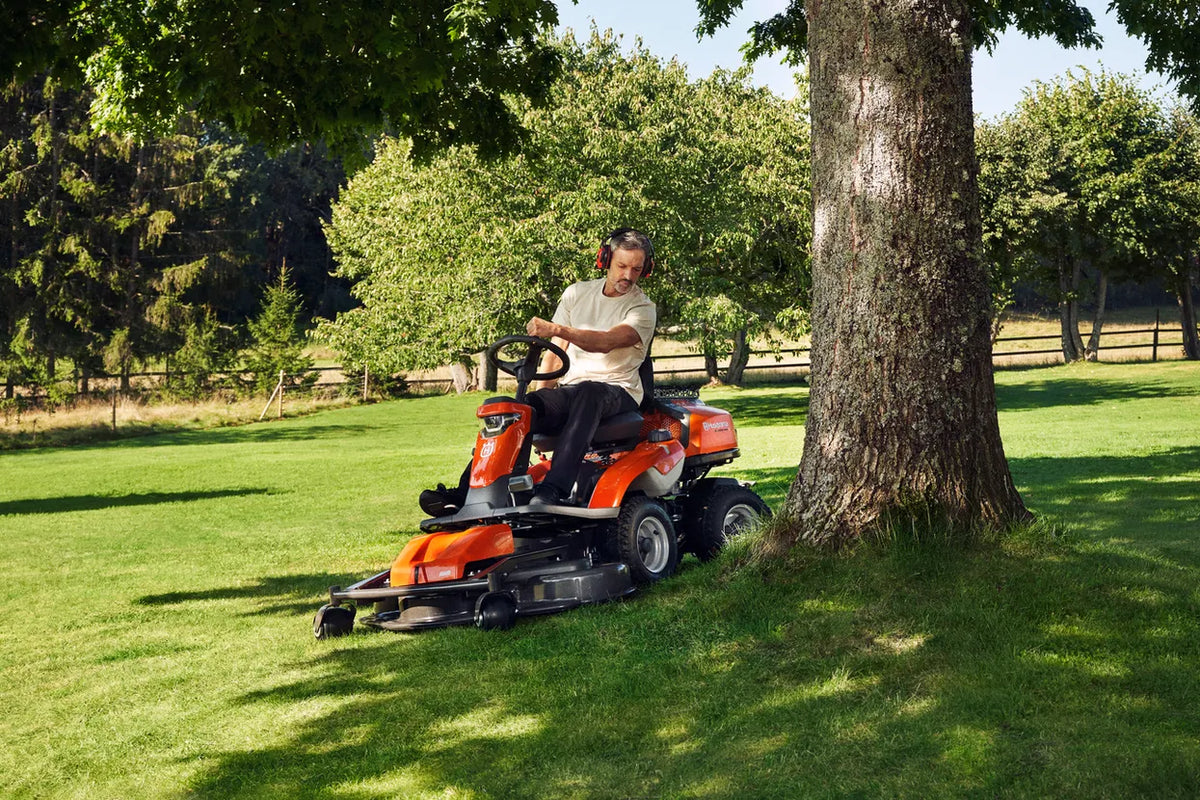

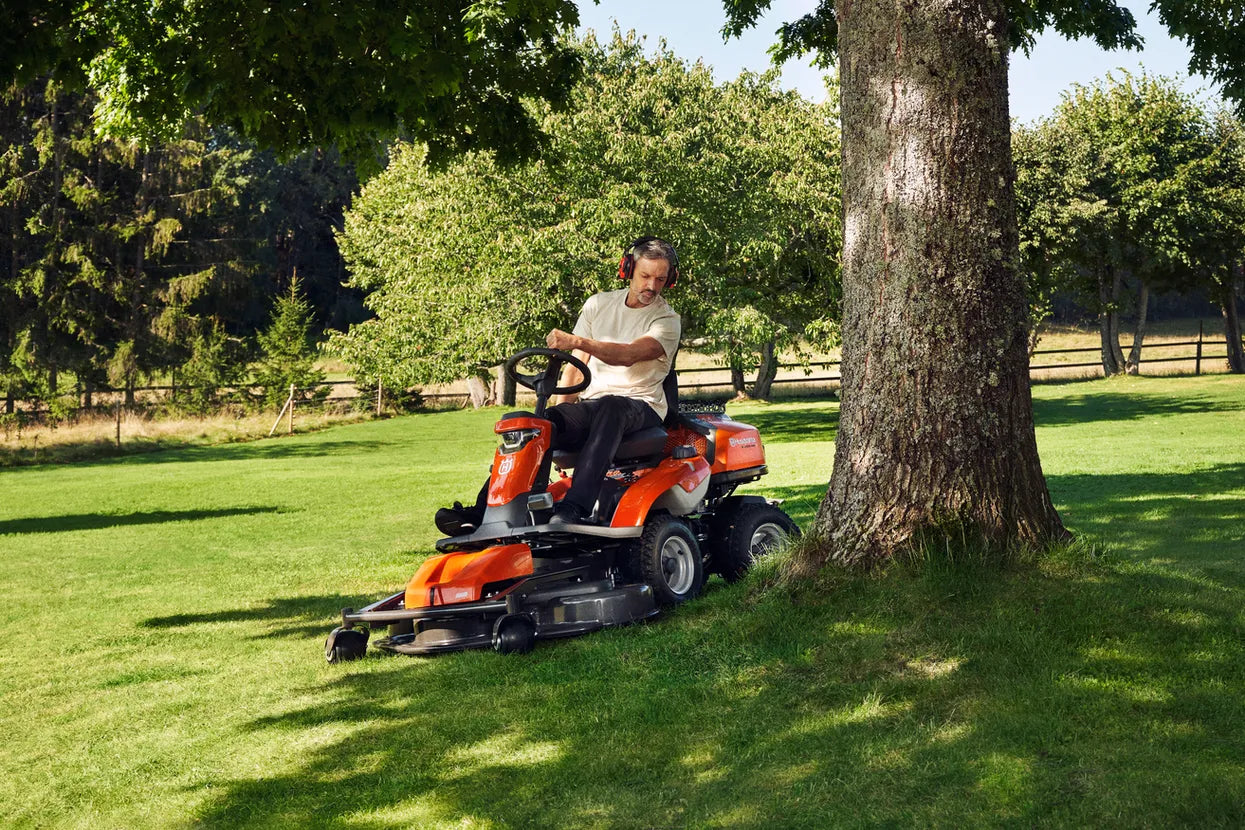

The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock.

All-Wheel-Drive (AWD)

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. This gives you reliable maneuverability and uniform cutting results, even when the conditions are challenging. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.

Service position

The cutting deck can be tilted up into service position for easy access during cleaning or service.

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play. Not yet available on all markets.

TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TsXAWD Rider), 967188501 COMBI 112 CUTTING DECK)

Art no: 970 54 29‑10

Engine

  • Power/fuel type: Petrol
  • Net power at preset rpm Energy: 19.7 kW
  • Net power at preset rpm: 3,100 rpm
  • Engine brand: Kawasaki
  • Motor/engine manufacturer: Kawasaki
  • Engine name: FS481V
  • Cylinder displacement: 603 cm³
  • Cylinders: 2
  • Engine cooling: Air
  • Engine lubrication type: Full pressure
  • Oil filter: Yes

Emission

  • Exhaust emissions (CO₂ EU V): 2851 g/kWh

Battery

  • Battery capacity: 24 Ah
  • Battery Chemistry: Lead-Acid
  • Battery Weight: 7.2 kg
  • Battery brand: Global

Cutting deck

  • Uncut circle: 30 cm
  • Cutting width, min: 94 cm
  • Cutting width, max: 112 cm
  • Cutting height min: 25 mm
  • Cutting height max: 75 mm
  • Blade engagement: Automatic

Dimensions

  • Tyre dimensions, front: 170/60-8
  • Tyre dimensions, rear: 170/60-8
  • Wheelbase: 88.7 cm
  • Ground clearance: 90 mm
  • Base machine, length: 200.8 cm
  • Base machine, width: 88.3 cm
  • Base machine, height: 118.1 cm
  • Gross weight towed: 3125 kg
  • Weight (excl. cutting equipment): 251 kg

Drive system

  • PTO (Power Take Off): Belt Drive
  • Transmission type: Hydrostatic
  • Drive method: Dual pedal-operation
  • Speed forward max: 9 km/h
  • Speed reverse max: 6 km/h

Equipment

  • Seat suspension: Yes
  • Seat type: Premium
  • Hour meter type: Digital
  • Seat material: Vinyl
  • Seat back height: High
  • Foldable seat: Yes
  • Steering wheel type: Ergonomic - soft grip
  • Parking brake, type: Disc

Vibration

  • Vibration level steering wheel: 2.5 m/s²
  • Vibration level seat: 0.7 m/s²

Sound and noise

  • Sound pressure level at operators ear (LpA): 87 dB(A)
  • Sound power level, guaranteed (LWA): 99 dB(A)
  • Sound power level, measured: 98 dB(A)
